Pixar M9 Electric Bike — Retro Dual-Battery Fat-Tyre E-Bike
The Pixar M9 is a retro-styled, dual-battery electric bike built for comfort, range and everyday practicality. A 250W BAFANG brushless rear-hub motor, two 48V 17.5Ah Samsung batteries (1680Wh), full front and rear suspension, 20" × 4" Kenda fat tyres, hydraulic disc brakes and NFC tap-to-unlock make it one of the most complete urban e-bikes in Ireland at this price. Pedal-assist is capped at 25 km/h, so the M9 is road-legal in Ireland as an e-bike and eligible for the Bike to Work scheme. Available now at Inner City Scooters, Ballymount, Dublin, with free delivery across Ireland and shipping to the EU.
Pixar M9 at a glance
- Motor
- 250WBAFANG brushless rear hub, 60 Nm
- Top speed
- 25 km/hEU pedal-assist limit
- Range
- Up to 130 kmeveryday use; 240 km max in PAS 1
- Battery
- 2 × 48V 17.5AhSamsung 21700 cells, 1680Wh
- Weight
- 49.5 kgnet, batteries fitted
- Rider height
- 160–200 cmrecommended fit
- Max load
- 120 kgrider plus cargo
- Warranty
- 2 yearsplus Dublin service support
Retro soul, smart ride
Classic elegance meets modern efficiency. The M9 keeps you cool, composed and completely in control — a proper fat-tyre cruiser with a two-person seat, front rack and full lighting, backed by the kind of range that lets you commute all week on one charge.
250W high-speed brushless motor
Smooth and reliable: a BAFANG 250W high-speed brushless rear-hub motor with 5-level pedal assist and a sinusoidal-wave controller for a smoother ride and smarter power delivery — fully EU-compliant at 25 km/h.

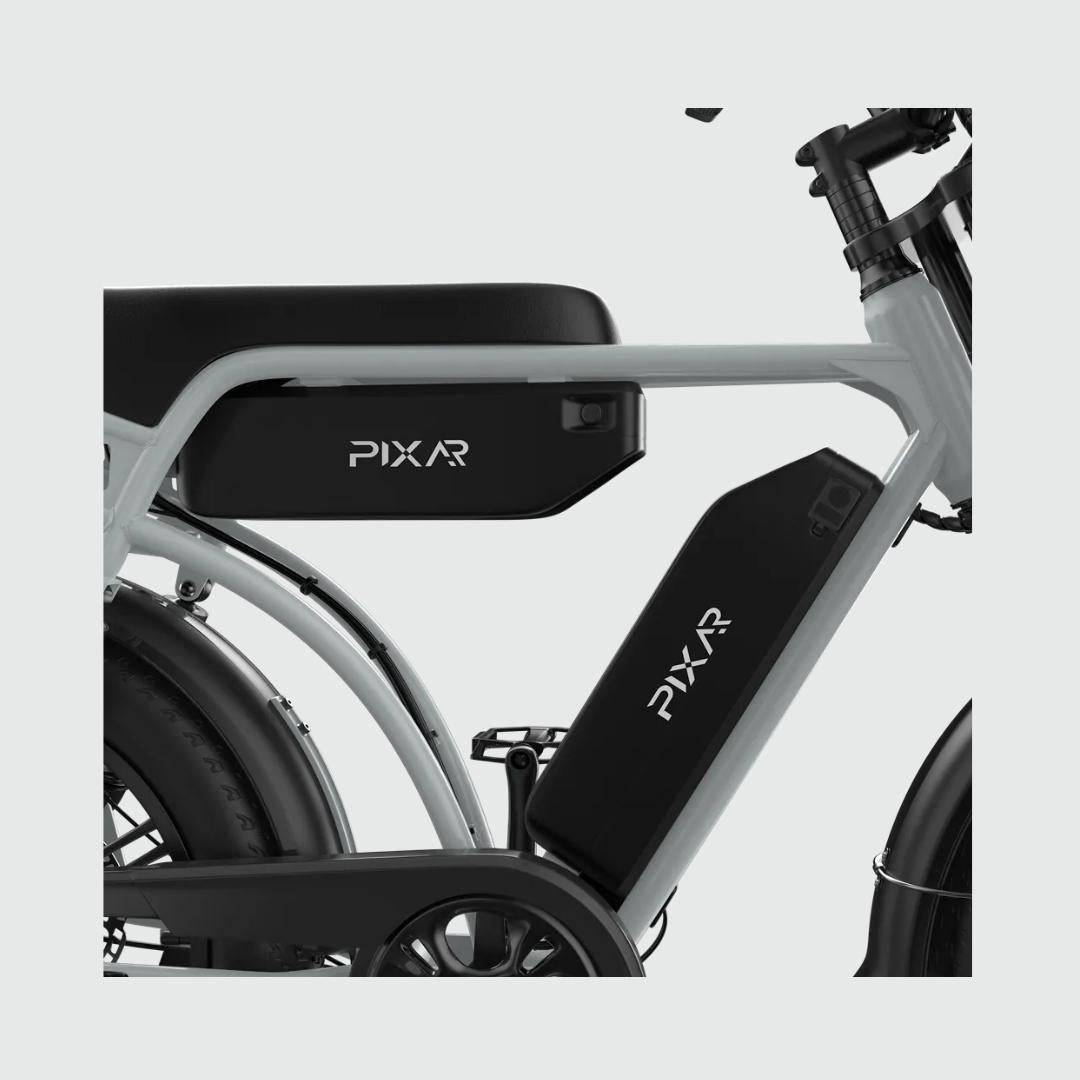

Dual battery, greater range
Two 48V 17.5Ah Samsung 21700 batteries (1680Wh combined) offer around 6% higher energy density than 18650 cells for extended range and power. Quick-release design lifts each pack out for charging indoors, and the IPX6 rating keeps them reliable in all weather.
NFC unlocking mode
Say goodbye to traditional keys. The M9 comes with NFC unlocking — a simple tap of the supplied card on the display is all it takes to power up your ride.
Intelligent burglar alarm
The M9 is equipped with a smart anti-theft alarm system. The moment someone tries to move or tamper with your bike, a powerful alarm sounds instantly.
Left / right turn signals
Bright, visible indicators are built into the frame front and rear. With a simple press you can clearly show drivers and pedestrians which way you're turning — and a brake light tells traffic behind when you're stopping.
Type-C fast charging & phone mount
The M9 comes equipped with a Type-C charging port and a built-in phone mount, so your phone stays topped up for navigation on longer rides.
Electronic control configuration
Pedal-assist levels, speed and range
Five assist levels let you trade speed for range. The figures below are Pixar's own test results with an 80 kg rider on flat roads; expect a practical everyday range of around 100–130 km in Irish conditions with hills, wind and higher assist levels.
| PAS level | Average speed | Range |
|---|---|---|
| PAS 1 | 10 km/h | 240 km |
| PAS 2 | 14 km/h | 196 km |
| PAS 3 | 18 km/h | 148 km |
| PAS 4 | 22 km/h | 124 km |
| PAS 5 | 25 km/h | 100 km |
Results obtained with a rider weighing 80 kg in a flat road environment at 33 °C. Cruising range varies with riding conditions, rider weight, terrain and temperature.
Detailed feature introduction & configuration

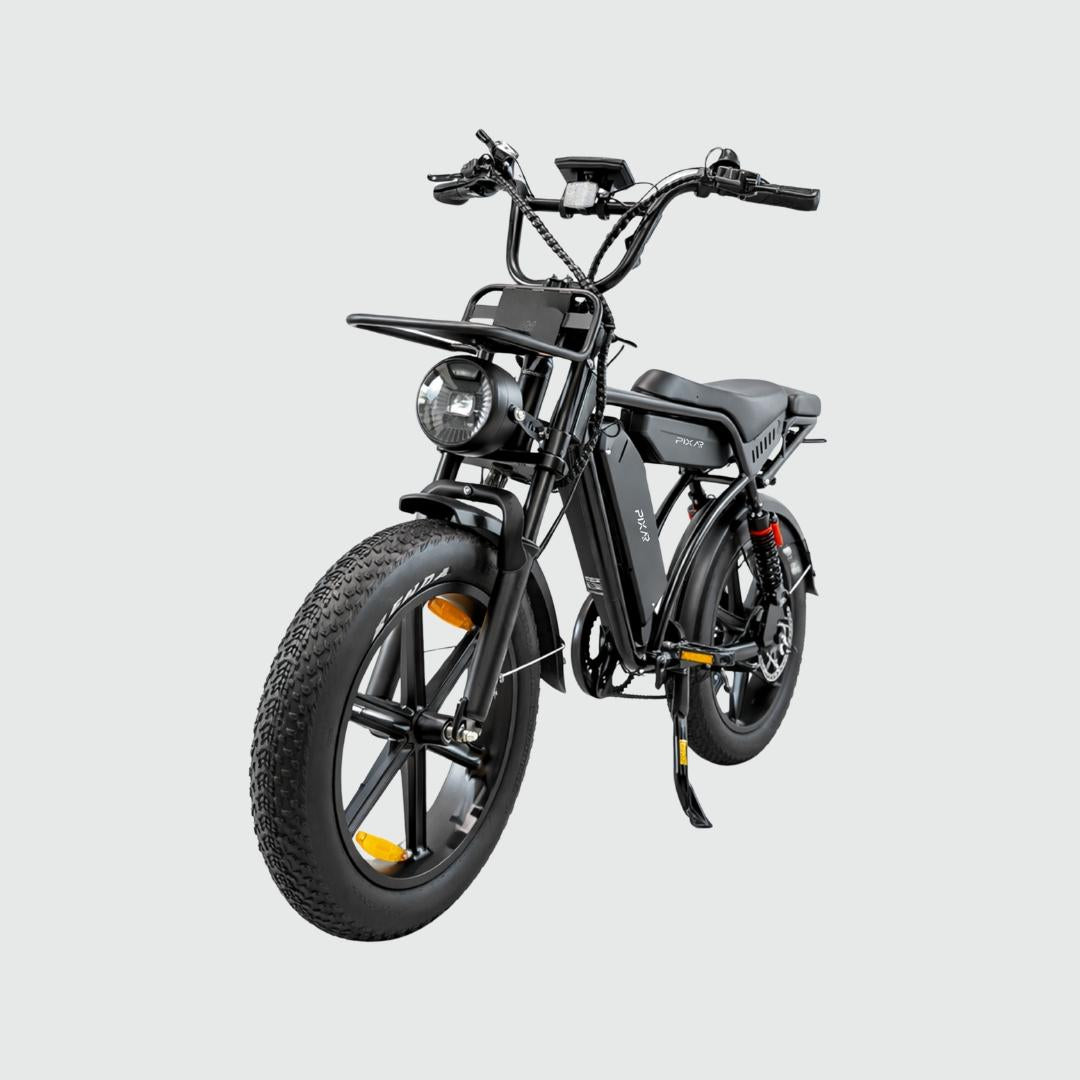

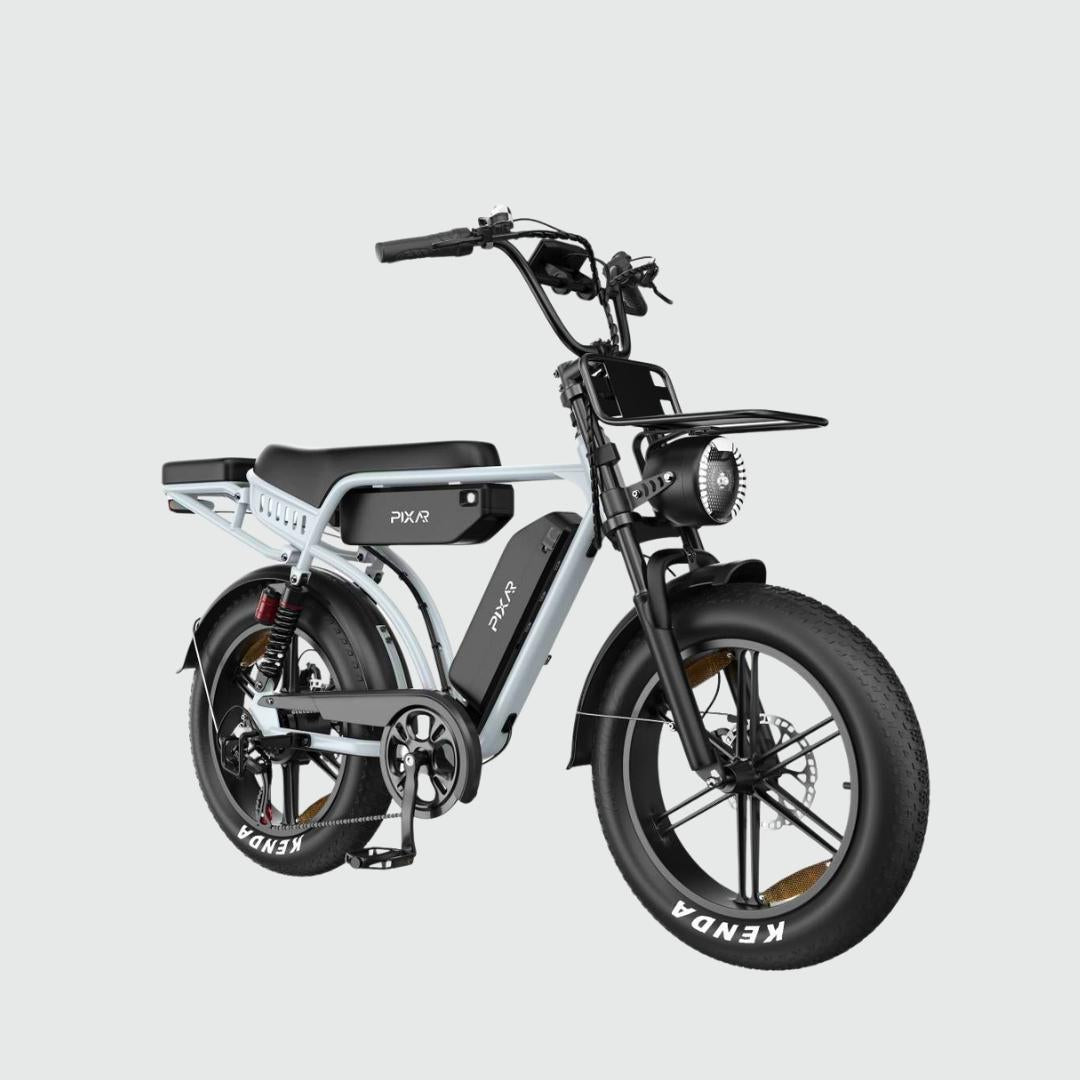

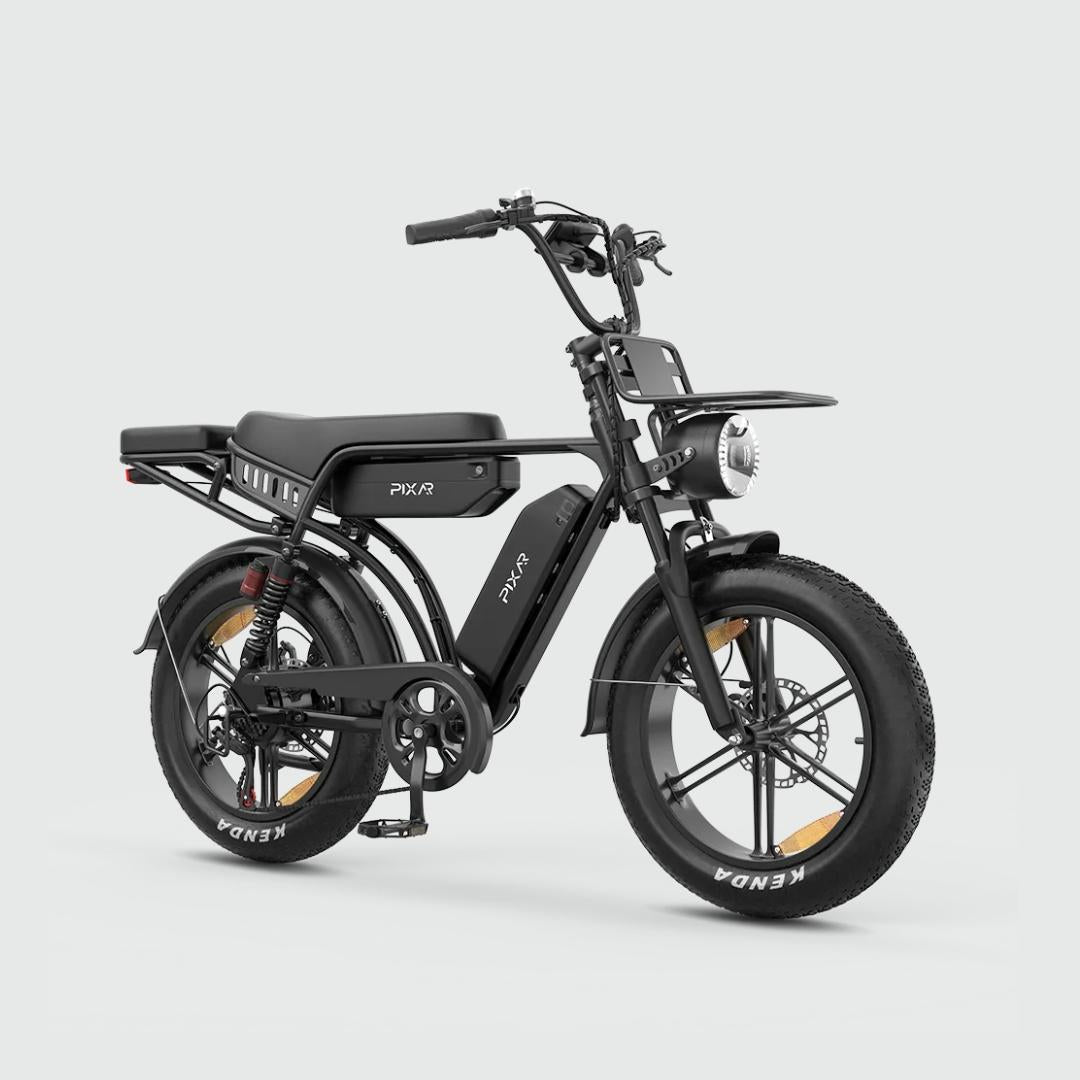

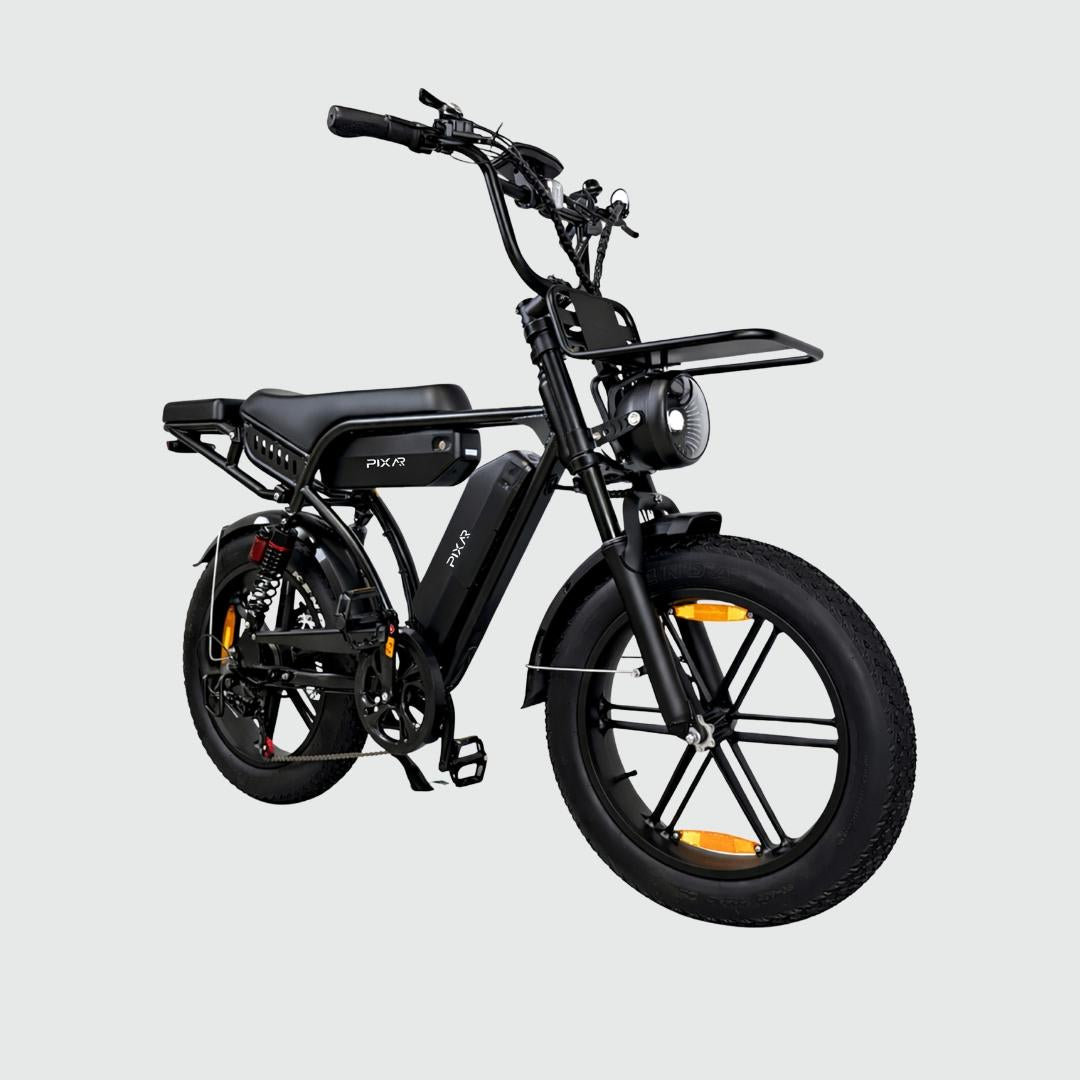

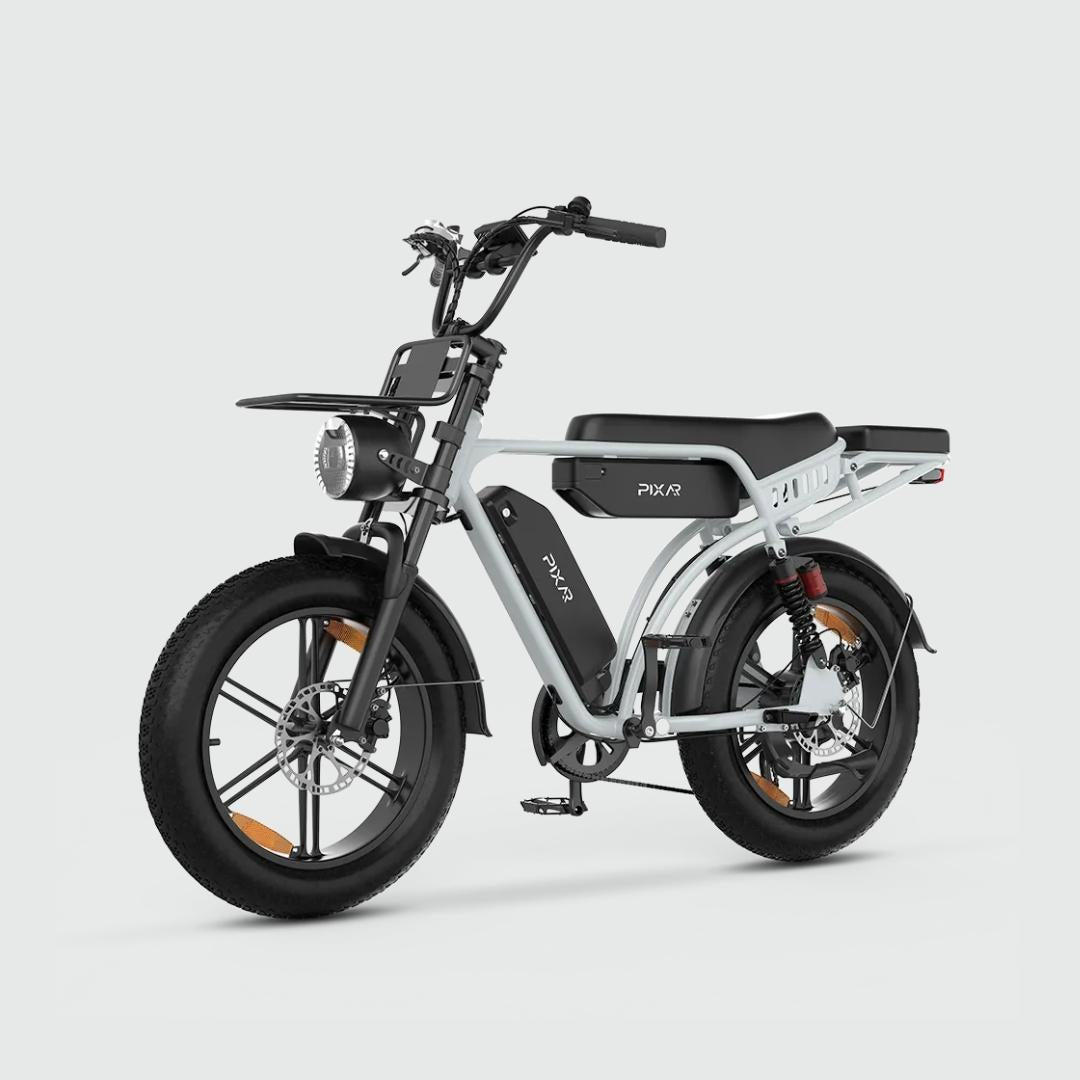

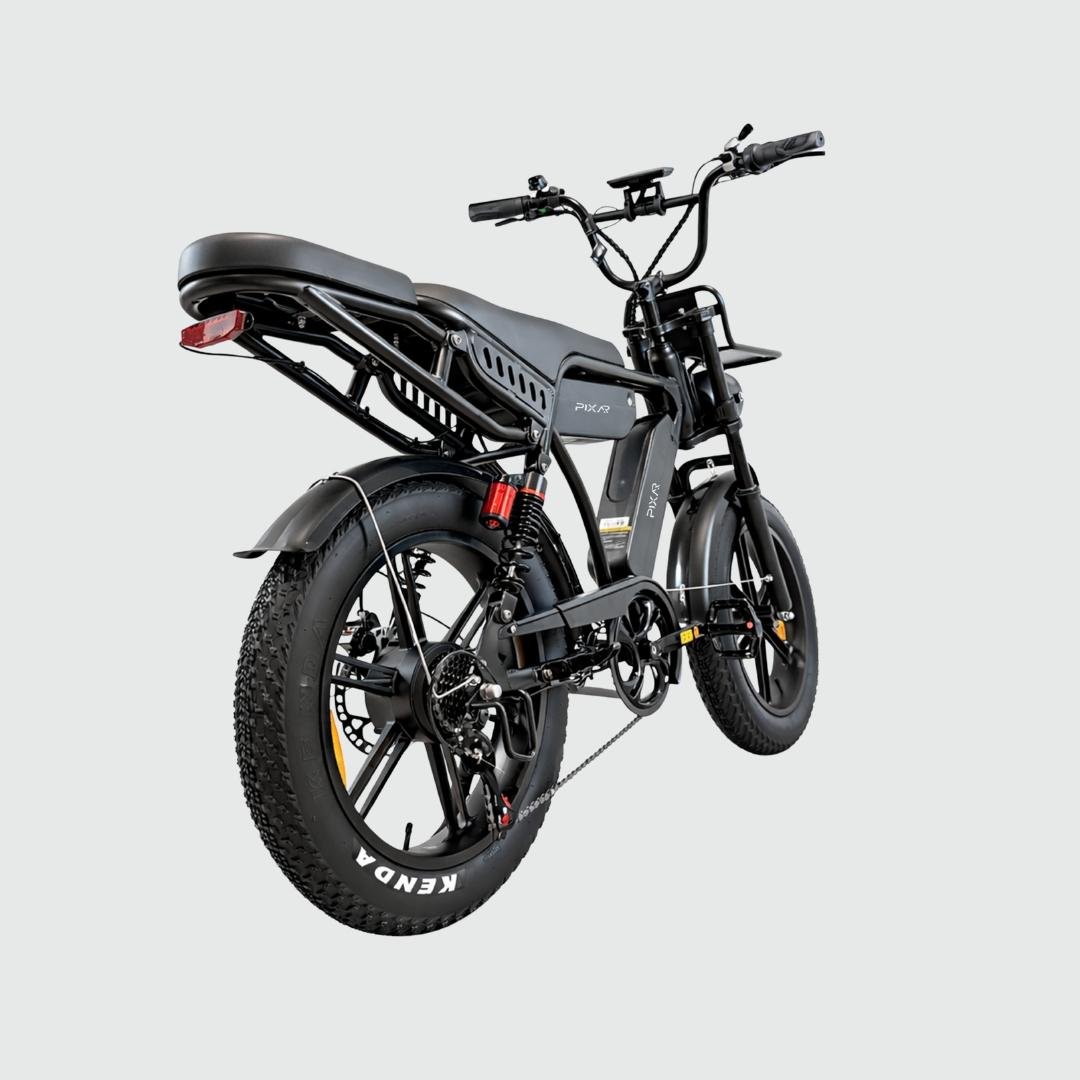

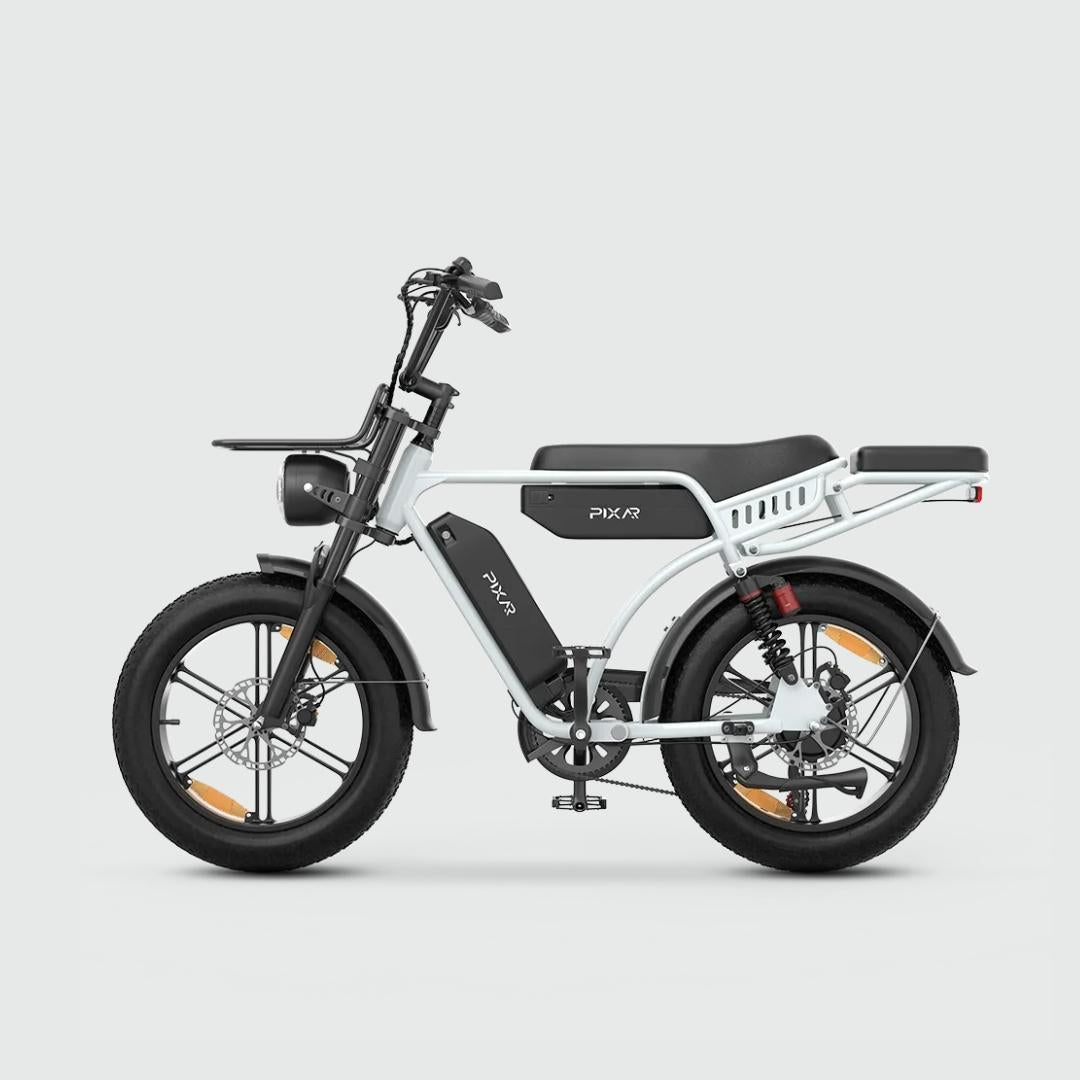

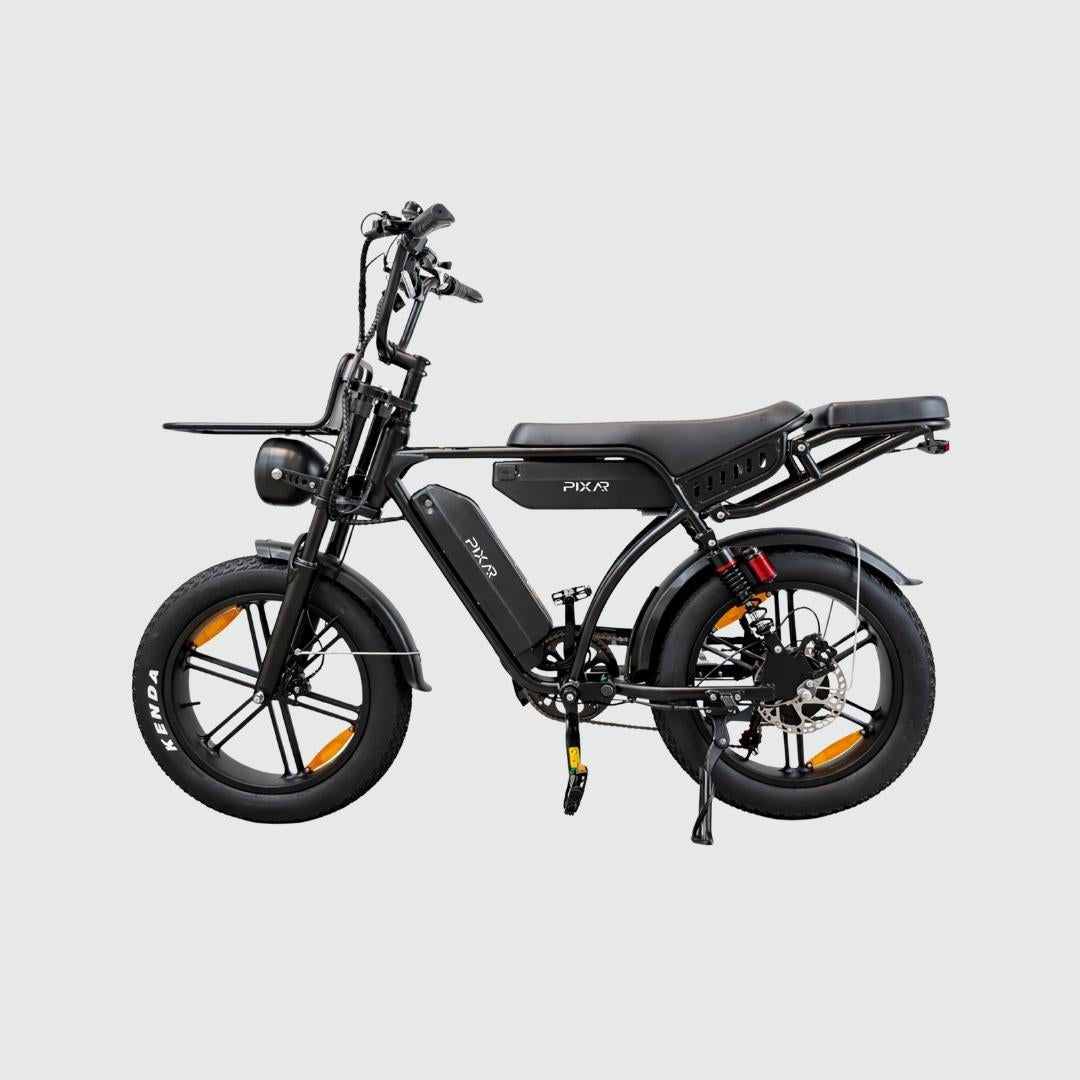

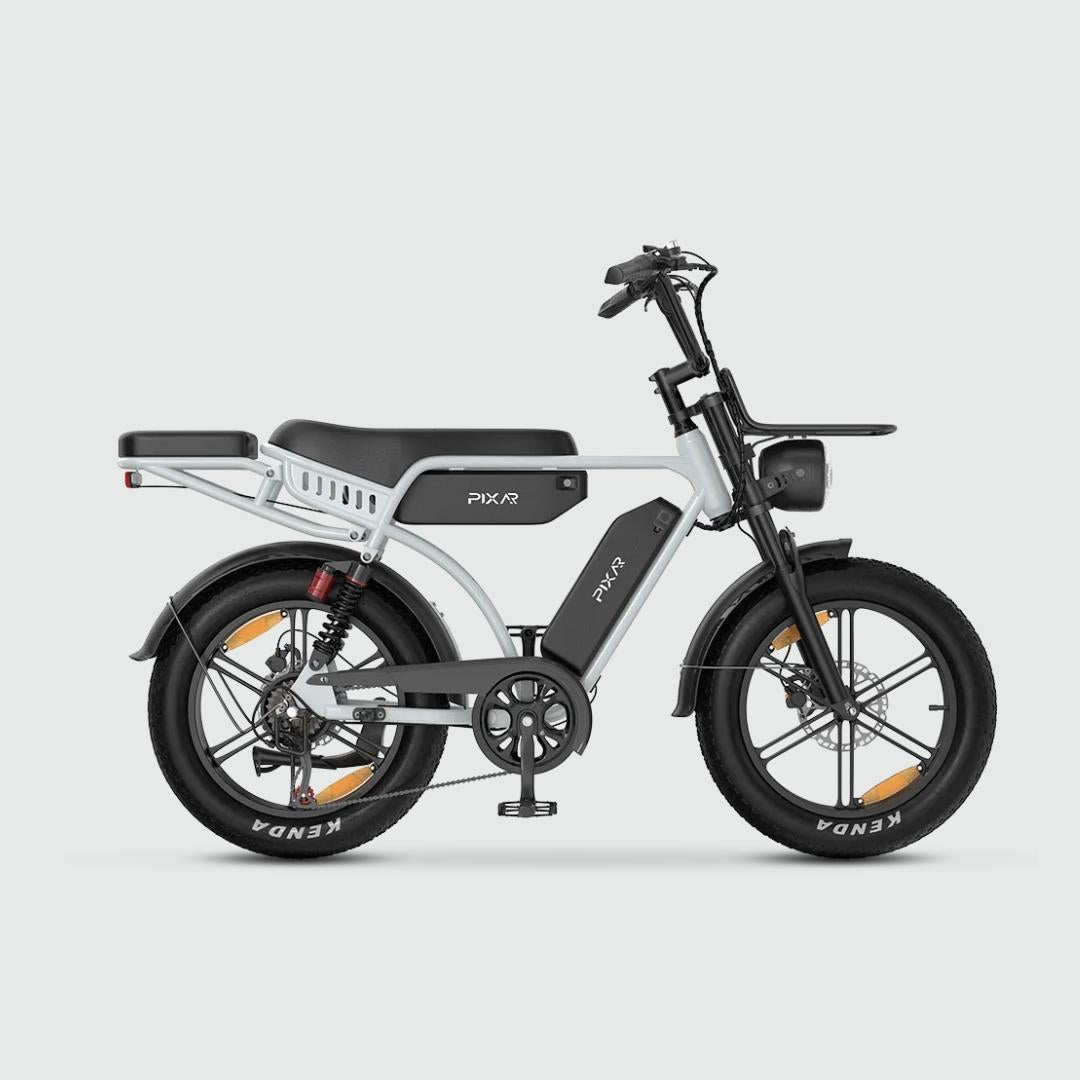

Pixar M9 gallery
Size & fit — Pixar M9 geometry
The M9 is a full-size cruiser with a low, relaxed riding position. Pixar recommends it for riders from 160 cm to 200 cm tall. Overall dimensions are 170 × 68 × 113 cm and the bike weighs 49.5 kg with both batteries fitted (each battery is 5.5 kg and lifts out for charging).
Is the Pixar M9 road-legal in Ireland?
Pixar M9 specifications
| Motor & performance | |
|---|---|
| Motor | BAFANG 250W peak rear-hub brushless motor, 3805 rpm max |
| Torque | 60 Nm |
| Top speed | 25 km/h (EU pedal-assist limit) |
| Pedal assist | 0–5 PAS levels, speed sensor |
| Walk assist | 6 km/h |
| Range | Up to 130 km in everyday use; 100 km (PAS 5) to 240 km (PAS 1) in manufacturer testing |
| Climbing angle | Up to 50° (manufacturer rating); 15° sustained |
| Battery & charging | |
| Battery | 2 × 48V 17.5Ah (35Ah / 1680Wh) Samsung 21700 cells, quick-release, IPX6, CE certified |
| Battery weight | 2 × 5.5 kg |
| Charger | 54.6V 2A smart charger with temperature-control protection, CE certified |
| Charging time | Approx. 5–7.5 hours per battery |
| Chassis, brakes & drivetrain | |
| Frame | High-grade alloy, retro step-over cruiser frame |

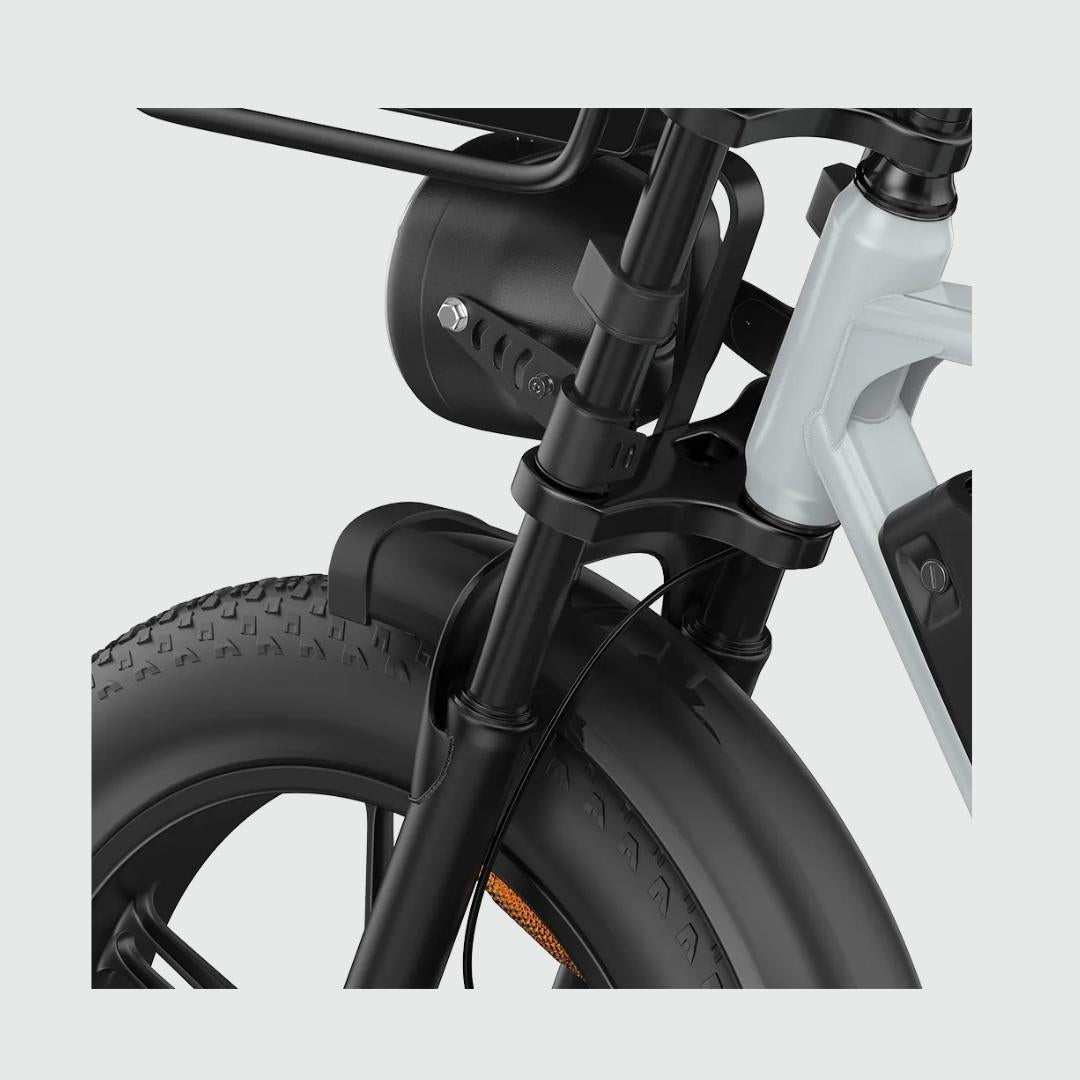

| Front suspension | Aluminium adjustable spring-hydraulic fork, 630 mm total length, 100 mm travel |

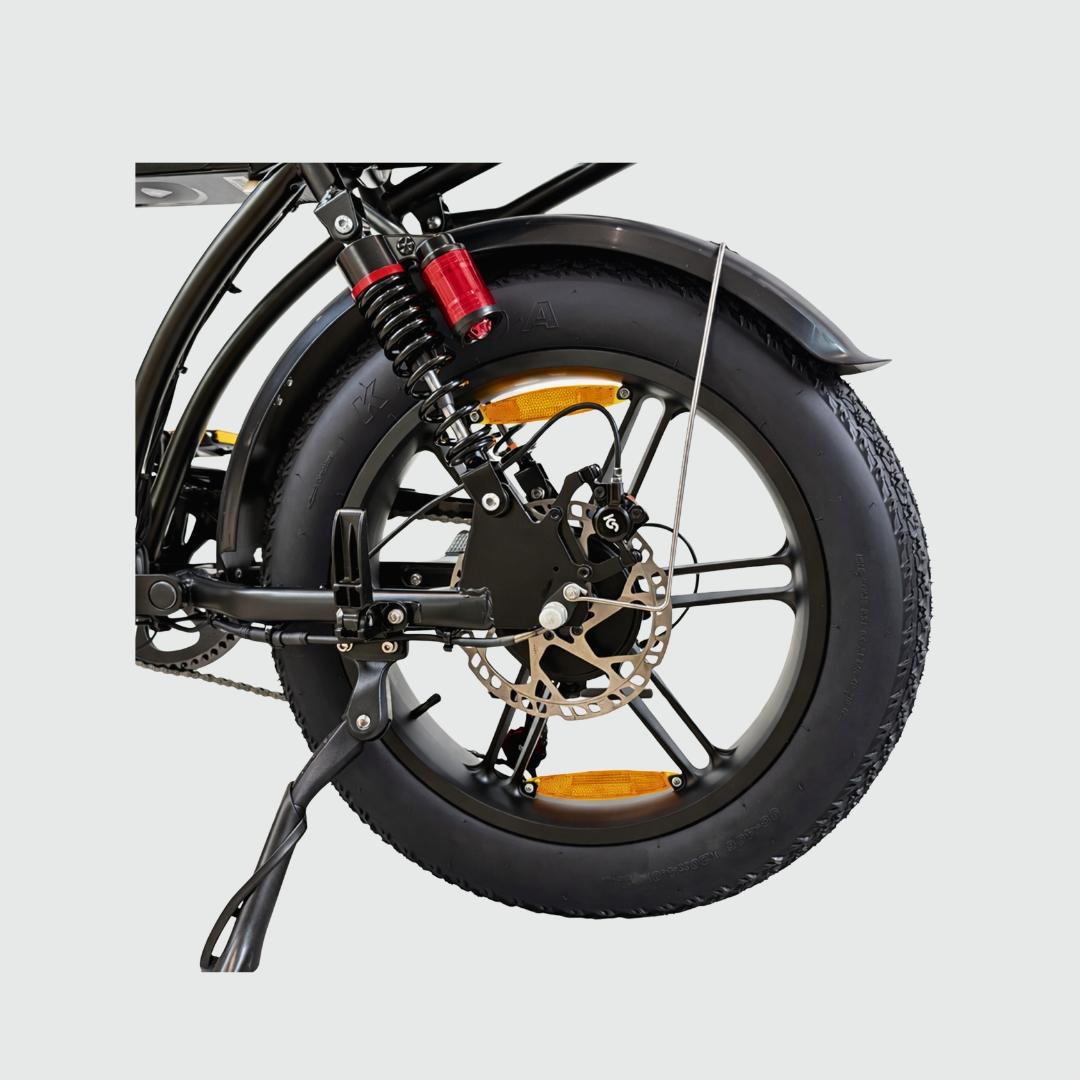

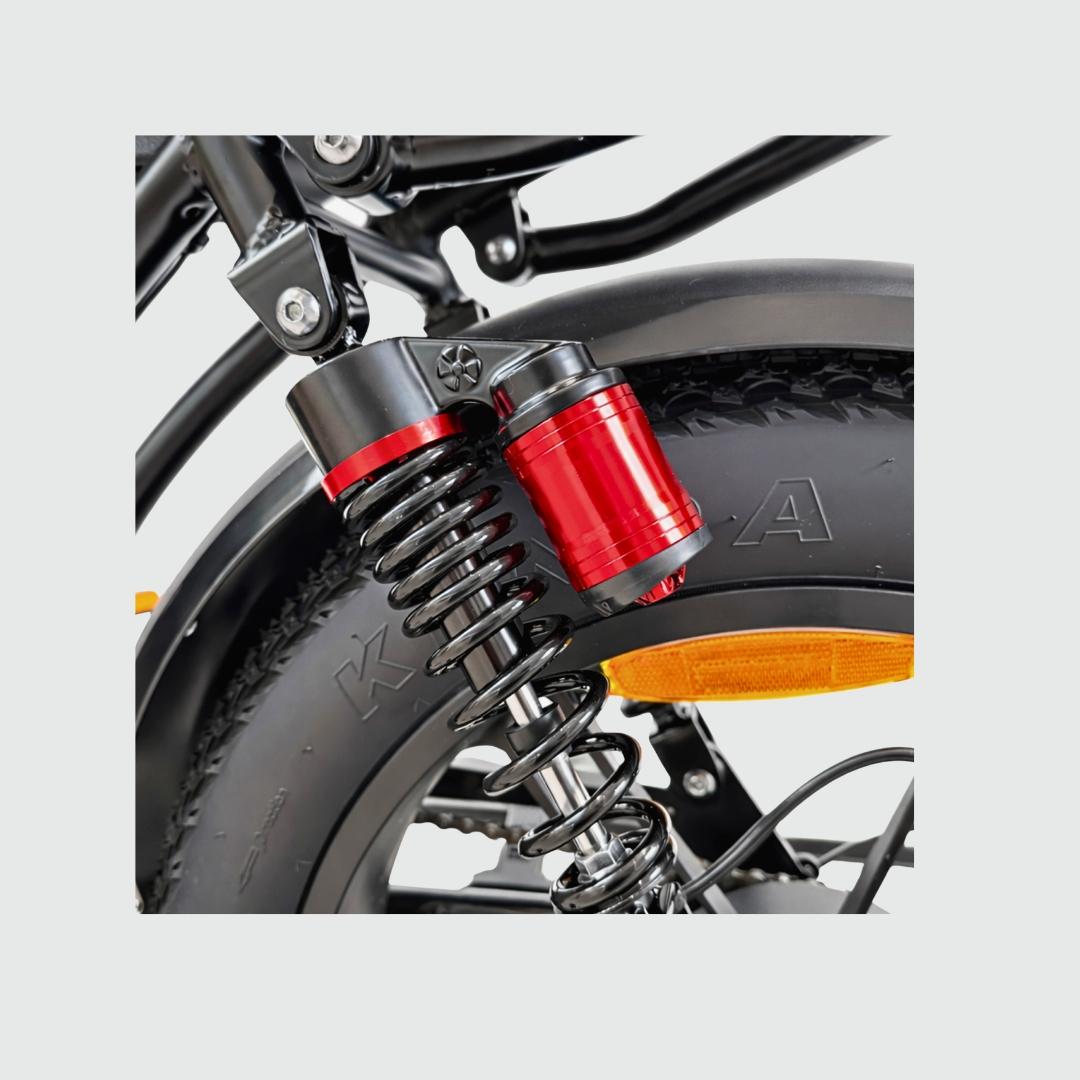

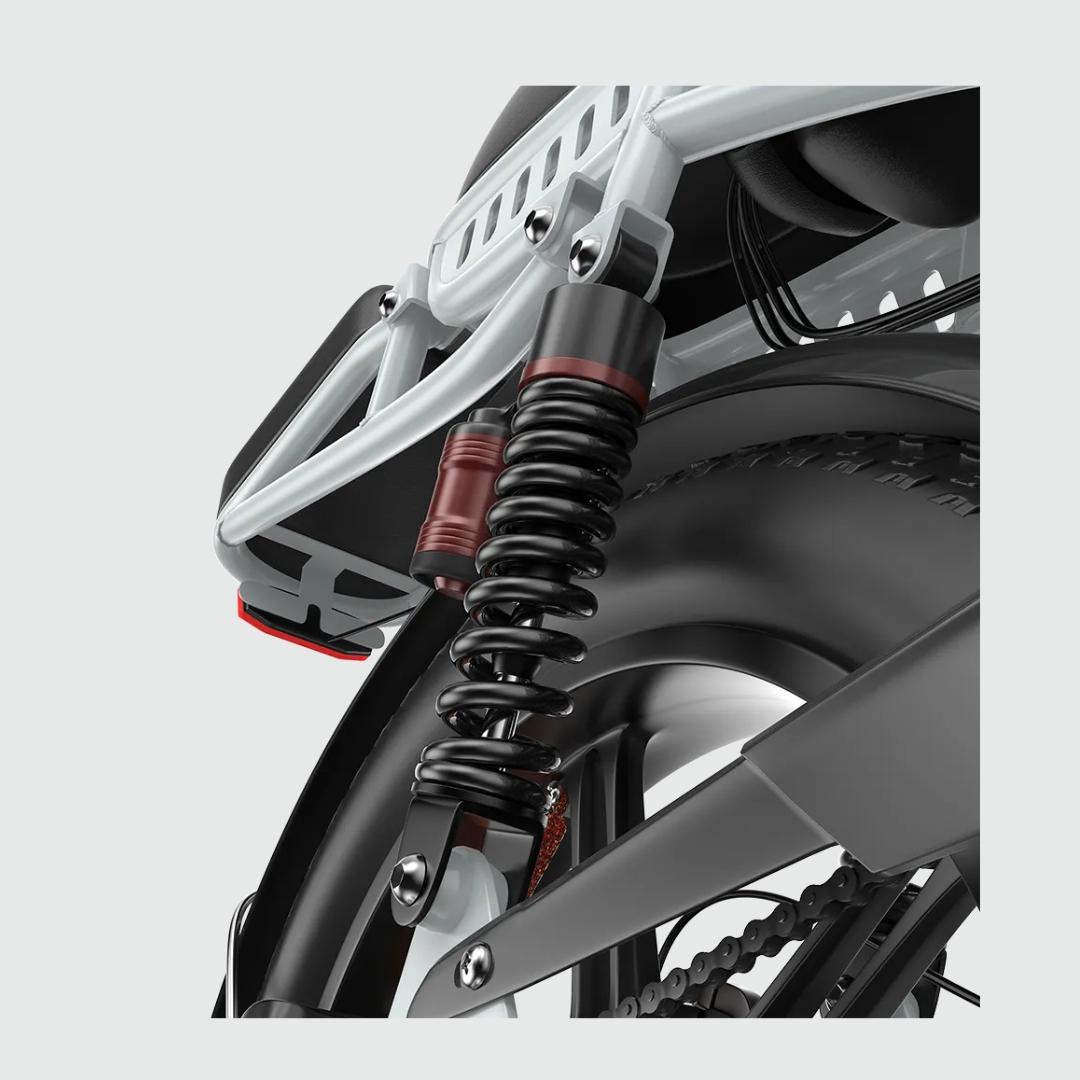

| Rear suspension | Dual rear shock absorber springs |
| Brakes | Front and rear hydraulic disc, 180 mm rotors, aluminium levers with brake-priority cut-off |
| Gears | Shimano 7-speed indexed freewheel and derailleur, 14–28T |
| Crankset | 180 mm crank arms, 48T chainring, enclosed chain guard |
| Chain | 1/2" × 3/32" × 118L |
| Pedals | 10 × 9 cm non-slip studded pedals with reflectors |
| Rims | Alloy 20" × 4" × 13G × 36H, 12G × 212 mm spokes (EN 15194 compliant) |
| Tyres | Kenda 20" × 4" fat tyres, 45 psi; 20" × 4" inner tubes, 35 mm valve |
| Electronics & safety | |
| Display | Multifunction colour LCD, IPX6 waterproof, NFC unlocking, Type-C 12W charging port |
| Security | NFC tap-to-unlock + 100 dB intelligent anti-theft alarm, 4 keys supplied |

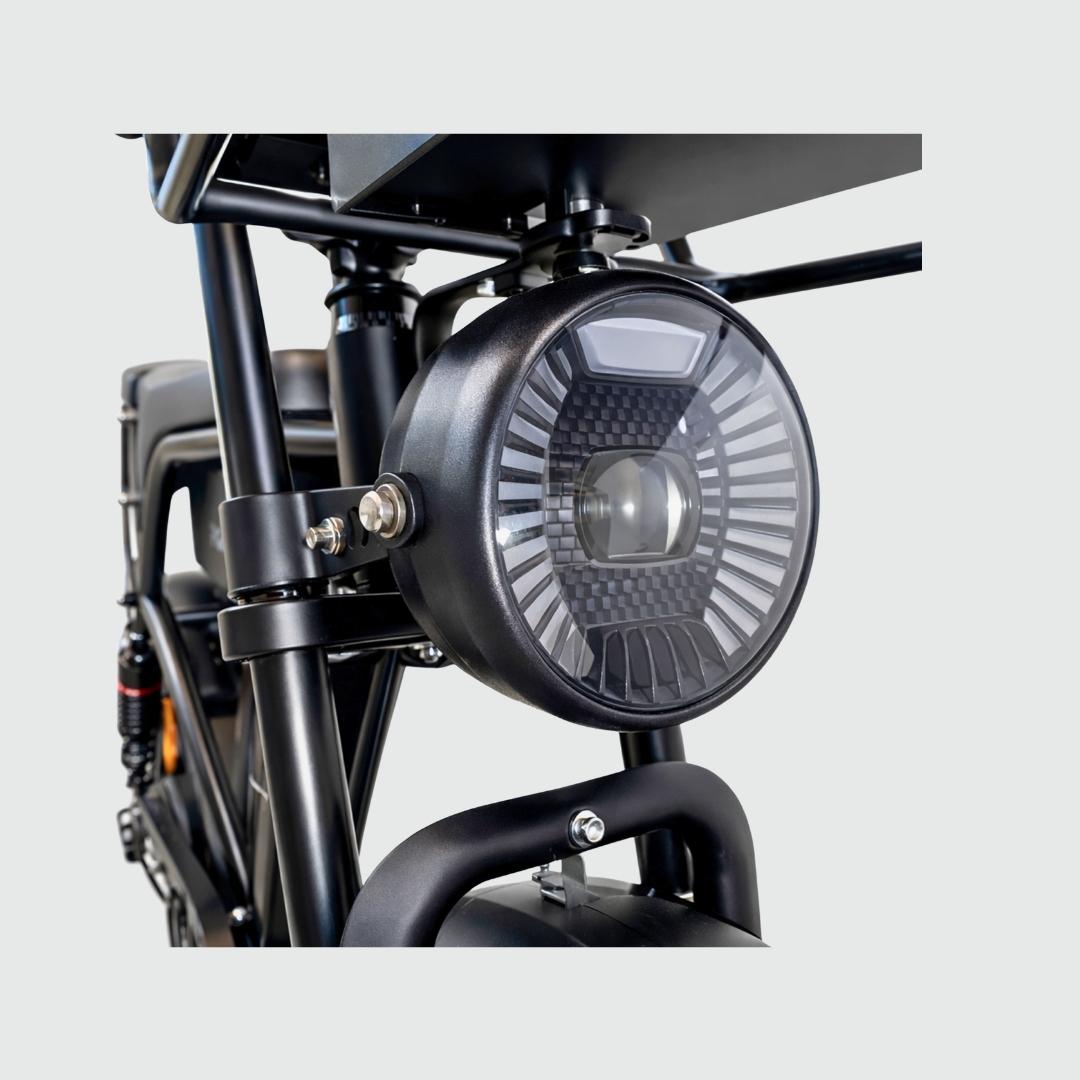

| Lights | LED headlight (20 m) with integrated turn signals, rear turn signals and brake light, reflectors |
| Water resistance | IP54 bike; IPX6 battery and display |
| Practicality & dimensions | |
| Included | Two-person faux-leather seat, passenger footpegs, front storage rack, rear rack, front & rear mudguards, chain guard, phone mount, kickstand, bike lock, toolkit |
| Dimensions | 170 × 68 × 113 cm (L × W × H) |
| Weight | 49.5 kg net (58.6 kg gross, boxed 139 × 27 × 87.5 cm) |
| Max load | 120 kg |
| Rider height | 160–200 cm |

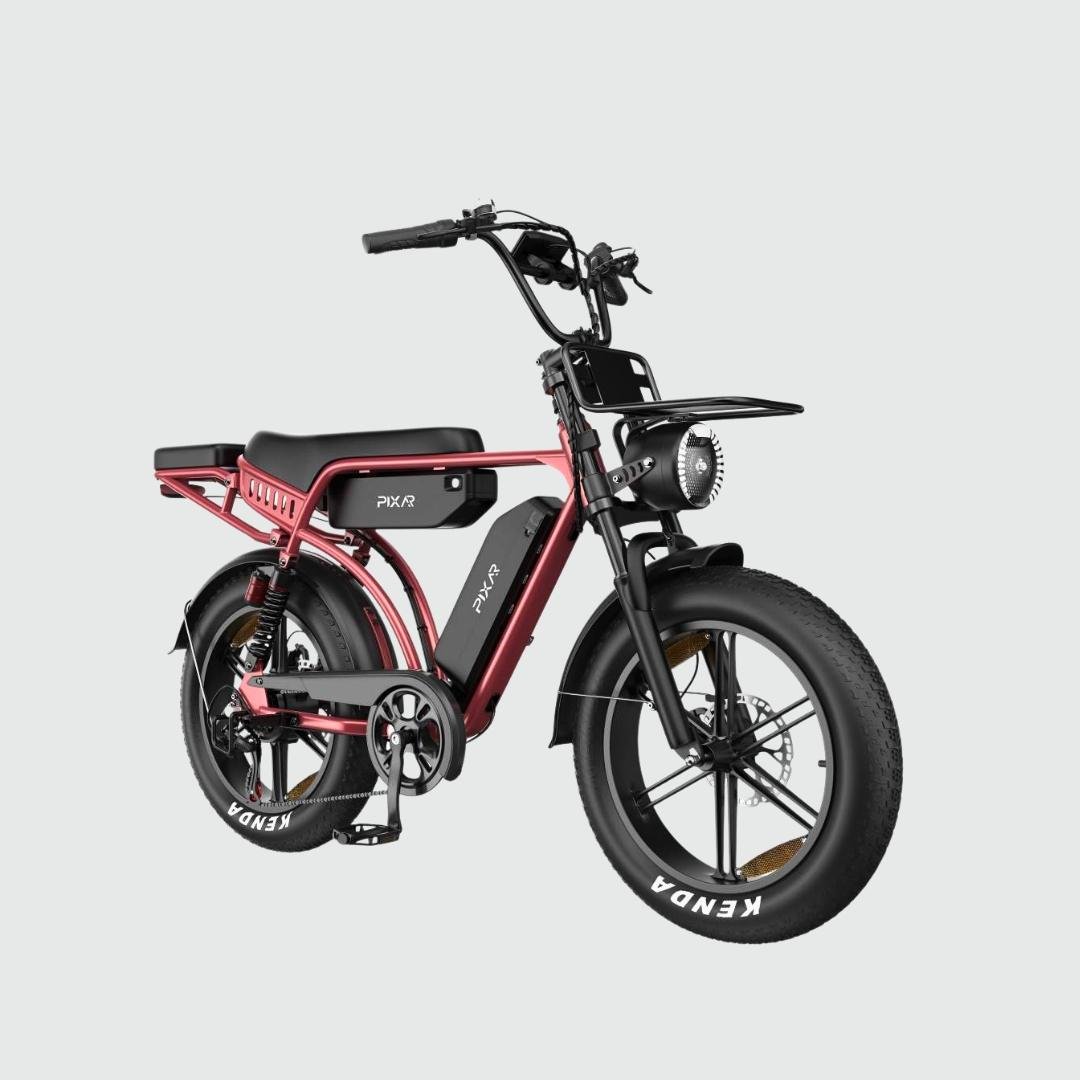

| Colours | Black, Grey, Pink |
| Certification | CE, EN 15194, RoHS |
| Warranty | 2 years |
What's in the box?
M9 assembly instructions
The M9 arrives mostly assembled — fit the front wheel, pedals, handlebar and front bracket and you're ready to go. This official walkthrough shows every step. Prefer it built for you? Our Dublin workshop can assemble and safety-check your M9 before collection or dispatch.
FAQ about the Pixar M9 Electric Bike
Is the Pixar M9 road-legal in Ireland?
Yes. With a 250W motor and pedal assistance that cuts off at 25 km/h, the M9 meets the EU pedelec (EPAC / EN 15194) standard, so ridden in pedal-assist it is treated like a regular bicycle in Ireland — no tax, insurance, licence or registration needed. The throttle is a 6 km/h walk-assist only. Wear a helmet and use the lights after dark.
How far does the Pixar M9 really go on a charge?
The two 48V 17.5Ah Samsung batteries give 1680Wh combined. Pixar's own testing shows 240 km in PAS 1 (10 km/h average) down to 100 km in PAS 5 (25 km/h) with an 80 kg rider on flat roads. In everyday Irish riding with hills and wind, plan on around 100–130 km — still enough for a week of commuting.
How long does it take to charge?
Each battery charges from empty in roughly 5–7.5 hours with the supplied 54.6V 2A smart charger. Both packs are quick-release, so you can lift them out and charge indoors. Avoid charging in direct sunlight or very hot conditions, and keep the bike out of the rain while a battery is removed because the controller sits under the battery mount.
How does NFC unlocking work?
Instead of a key, you tap the supplied NFC card on the display and the bike powers up in about half a second. It is backed by a 100 dB anti-theft alarm that triggers the moment someone moves or tampers with the bike, plus four physical keys for the battery locks.
Can two people ride the Pixar M9?
Yes — the M9 has a long two-person faux-leather seat and rear passenger footpegs. Stay within the 120 kg maximum load, take extra care with the heavier, longer load, and check local rules before carrying a passenger on public roads.
Is the M9 OK in Irish rain?
Yes. The bike is rated IP54 and the battery and display are IPX6, so rain, splashes and wet roads are fine. Avoid deep water and jet-washing, and dry the bike off before storing it.
What height does the Pixar M9 suit?
Pixar recommends riders from 160 cm to 200 cm. The seat height is 84 cm and the handlebar height 120 cm, giving a relaxed, upright cruiser position. You are welcome to try one for size at our Ballymount showroom in Dublin.
Does the M9 need assembly?
It arrives mostly built — fit the front wheel, pedals, handlebar and front bracket using the supplied toolkit, following the assembly video above. If you prefer, our Dublin workshop can assemble and safety-check the bike before collection or delivery.
Is the Pixar M9 eligible for the Bike to Work scheme?
Yes. At under the €1,500 e-bike limit and with EU pedelec compliance, the M9 qualifies for the Irish Bike to Work scheme. Contact us for an invoice or quote for your employer.
What warranty, delivery and finance do you offer?
The M9 comes with a 2-year manufacturer warranty, backed by after-sales support, spares and servicing at Inner City Scooters in Dublin. Delivery is free across Ireland, usually within a few working days, with shipping available to the EU, and you can spread the cost with 0% finance options such as Klarna and humm at checkout, subject to approval.
